HCT - Robust wall-mounted axial or long-cased fans

Manufacturer	SODECA, SLU
Description	Axial fan: HCT-25-2T/PL
Mass	7 kg
Length	230 mm
Unit width	310 mm
Unit height	310 mm
Input radius	120 mm
Input diameter	240 mm
Output radius	120 mm
Output diameter	240 mm

Voltage	400 V
Number of poles	3
Frequency	50 Hz
Current	0.37 A
Maximum flow	1940 m³/h
Minimum flow	600 m³/h
Rotational speed	2670 rpm
Omniclass number	23.33.33.00
Note	Only valid measurements are displayed on the table, all the other measurements may be approximated
Apparent load	256 V.A

CAD models

Request for quotation

Product selection

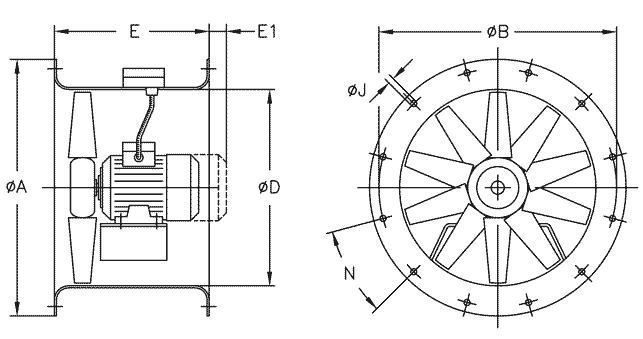

Index	Selector	Model	ØA (mm)	ØB (mm)	ØD (mm)	E (mm)	ØJ (mm)	N (mm)	E1 (mm)
1	1	HCT-25-2T/PL	310	280	240	230	10	4x90º	12
2	2	HCT-25-2M/PL	310	280	240	230	10	4x90º	12
3	3	HCT-25-4T/PL	310	280	240	230	10	4x90º	12
4	4	HCT-25-4M/PL	310	280	240	230	10	4x90º	12
5	5	HCT-31-2T/PL	350	320	280	270	10	4x90º	-
6	6	HCT-31-2M/PL	350	320	280	270	10	4x90º	-
7	7	HCT-31-4T/PL	350	320	280	270	10	4x90º	-
8	8	HCT-31-4M/PL	350	320	280	270	10	4x90º	-
9	9	HCT-35-2T/PL	425	395	355	280	10	8x45º	-
10	10	HCT-35-2M/PL	425	395	355	280	10	8x45º	-
11	11	HCT-35-4T/PL	425	395	355	280	10	8x45º	-
12	12	HCT-35-4M/PL	425	395	355	280	10	8x45º	-
13	13	HCT-40-4T-0.33/PL	490	450	410	320	12	8x45º	-
14	14	HCT-45-4T-0.5/PL	540	500	460	360	12	8x45º	-
15	15	HCT-45-4M-0.5/PL	540	500	460	360	12	8x45º	-
16	16	HCT-50-4T-0.75/PL	600	560	514	360	12	12x30º	-
17	17	HCT-56-4T-0.75/PL	660	620	560	400	12	12x30º	-
18	18	HCT-56-4T-1/PL IE3	660	620	560	400	12	12x30º	-
19	19	HCT-56-4T-1.5/PL IE3	660	620	560	400	12	12x30º	49
20	20	HCT-56-4T-2/PL IE3	660	620	560	400	12	12x30º	49
21	21	HCT-56-6T-0.33/PL	660	620	560	400	12	12x30º	-
22	22	HCT-56-6T-0.5/PL	660	620	560	400	12	12x30º	-
23	23	HCT-56-6T-0.75/PL	660	620	560	400	12	12x30º	-
24	24	HCT-63-4T-1/PL IE3	730	690	640	430	12	12x30º	-
25	25	HCT-63-4T-1.5/PL IE3	730	690	640	430	12	12x30º	-
26	26	HCT-63-4T-2/PL IE3	730	690	640	430	12	12x30º	-
27	27	HCT-63-4T-3/PL IE3	730	690	640	430	12	12x30º	39
28	28	HCT-63-4T-4/PL IE3	730	690	640	430	12	12x30º	39
29	29	HCT-63-6T-0.5/PL	730	690	640	430	12	12x30º	-
30	30	HCT-63-6T-0.75/PL	730	690	640	430	12	12x30º	-
31	31	HCT-71-4T-1.5/PL IE3	810	770	710	500	12	16x22º30'	-
32	32	HCT-71-4T-2/PL IE3	810	770	710	500	12	16x22º30'	-
33	33	HCT-71-4T-3/PL IE3	810	770	710	500	12	16x22º30'	16
34	34	HCT-71-4T-4/PL IE3	810	770	710	500	12	16x22º30'	16
35	35	HCT-71-6T-0.75/PL	810	770	710	500	12	16x22º30'	-
36	36	HCT-71-6T-1/PL IE3	810	770	710	500	12	16x22º30'	-
37	37	HCT-71-6T-1.5/PL IE3	810	770	710	500	12	16x22º30'	-
38	38	HCT-80-4T-3/PL IE3	900	860	800	500	12	16x22º30'	16
39	39	HCT-80-4T-4/PL IE3	900	860	800	500	12	16x22º30'	16
40	40	HCT-80-4T-5.5/PL IE3	900	860	800	500	12	16x22º30'	-
41	41	HCT-80-6T-1/PL IE3	900	860	800	500	12	16x22º30'	-
42	42	HCT-80-6T-1.5/PL IE3	900	860	800	500	12	16x22º30'	-
43	43	HCT-80-6T-2/PL IE3	900	860	800	500	12	16x22º30'	16
44	44	HCT-80-6T-3/PL IE3	900	860	800	500	12	16x22º30'	-
45	45	HCT-90-4T-4/PL IE3	1015	970	900	500	15	16x22º30'	9
46	46	HCT-90-4T-5.5/PL IE3	1015	970	900	500	15	16x22º30'	-
47	47	HCT-90-4T-7.5/PL IE3	1015	970	900	500	15	16x22º30'	60
48	48	HCT-90-4T-10/PL IE3	1015	970	900	500	15	16x22º30'	60
49	49	HCT-90-6T-3/PL IE3	1015	970	900	500	15	16x22º30'	-
50	50	HCT-90-6T-4/PL IE3	1015	970	900	500	15	16x22º30'	60
51	51	HCT-100-4T-7.5/PL IE3	1115	1070	1000	600	15	16x22º30'	-
52	52	HCT-100-4T-10/PL IE3	1115	1070	1000	600	15	16x22º30'	-
53	53	HCT-100-6T-3/PL IE3	1115	1070	1000	600	15	16x22º30'	-
54	54	HCT-100-6T-4/PL IE3	1115	1070	1000	600	15	16x22º30'	-
55	55	HCT-100-6T-5.5/PL IE3	1115	1070	1000	600	15	16x22º30'	-
56	56	HCT-25-2T/AL	310	280	240	230	10	4x90º	12
57	57	HCT-25-2M/AL	310	280	240	230	10	4x90º	12
58	58	HCT-25-4T/AL	310	280	240	230	10	4x90º	12
59	59	HCT-25-4M/AL	310	280	240	230	10	4x90º	12
60	60	HCT-31-2T/AL	350	320	280	270	10	4x90º	-
61	61	HCT-31-2M/AL	350	320	280	270	10	4x90º	-
62	62	HCT-31-4T/AL	350	320	280	270	10	4x90º	-
63	63	HCT-31-4M/AL	350	320	280	270	10	4x90º	-
64	64	HCT-35-2T/AL	425	395	355	280	10	8x45º	-
65	65	HCT-35-2M/AL	425	395	355	280	10	8x45º	-
66	66	HCT-35-4T/AL	425	395	355	280	10	8x45º	-
67	67	HCT-35-4M/AL	425	395	355	280	10	8x45º	-
68	68	HCT-40-2T-1.5/AL IE3	490	450	410	320	12	8x45º	7
69	69	HCT-40-4T-0.33/AL	490	450	410	320	12	8x45º	-
70	70	HCT-45-2T-2/AL IE3	540	500	460	360	12	8x45º	46
71	74	HCT-45-2T-3/AL IE3	540	500	460	360	12	8x45º	46
72	75	HCT-45-4T-0.5/AL	540	500	460	360	12	8x45º	-
73	76	HCT-45-4M-0.5/AL	540	500	460	360	12	8x45º	-
74	77	HCT-50-4T-0.75/AL	600	560	514	360	12	12x30º	-
75	78	HCT-56-4T-0.75/AL	660	620	560	400	12	12x30º	-
76	79	HCT-56-4T-1/AL IE3	660	620	560	400	12	12x30º	-
77	80	HCT-56-4T-1.5/AL IE3	660	620	560	400	12	12x30º	49
78	81	HCT-56-4T-2/AL IE3	660	620	560	400	12	12x30º	49
79	82	HCT-56-6T-0.33/AL	660	620	560	400	12	12x30º	-
80	83	HCT-56-6T-0.5/AL	660	620	560	400	12	12x30º	-
81	84	HCT-56-6T-0.75/AL	660	620	560	400	12	12x30º	-
82	85	HCT-63-4T-1/AL IE3	730	690	640	430	12	12x30º	-
83	86	HCT-63-4T-1.5/AL IE3	730	690	640	430	12	12x30º	-
84	87	HCT-63-4T-2/AL IE3	730	690	640	430	12	12x30º	-
85	88	HCT-63-4T-3/AL IE3	730	690	640	430	12	12x30º	39
86	89	HCT-63-4T-4/AL IE3	730	690	640	430	12	12x30º	39
87	90	HCT-63-6T-0.5/AL	730	690	640	430	12	12x30º	-
88	91	HCT-63-6T-0.75/AL	730	690	640	430	12	12x30º	-
89	92	HCT-71-4T-1.5/AL IE3	810	770	710	500	12	16x22º30'	-
90	93	HCT-71-4T-2/AL IE3	810	770	710	500	12	16x22º30'	-
91	94	HCT-71-4T-3/AL IE3	810	770	710	500	12	16x22º30'	16
92	95	HCT-71-4T-4/AL IE3	810	770	710	500	12	16x22º30'	16
93	96	HCT-71-6T-0.75/AL	810	770	710	500	12	16x22º30'	-
94	97	HCT-71-6T-1/AL IE3	810	770	710	500	12	16x22º30'	-
95	98	HCT-71-6T-1.5/AL IE3	810	770	710	500	12	16x22º30'	-
96	99	HCT-80-4T-3/AL IE3	900	860	800	500	12	16x22º30'	16
97	100	HCT-80-4T-4/AL IE3	900	860	800	500	12	16x22º30'	16
98	101	HCT-80-4T-5.5/AL IE3	900	860	800	500	12	16x22º30'	-
99	102	HCT-80-6T-1/AL IE3	900	860	800	500	12	16x22º30'	-
100	103	HCT-80-6T-1.5/AL IE3	900	860	800	500	12	16x22º30'	-
101	104	HCT-80-6T-2/AL IE3	900	860	800	500	12	16x22º30'	16
102	105	HCT-80-6T-3/AL IE3	900	860	800	500	12	16x22º30'	-
103	107	HCT-90-4T-4/AL IE3	1015	970	900	500	15	16x22º30'	9
104	108	HCT-90-4T-5.5/AL IE3	1015	970	900	500	15	16x22º30'	-
105	109	HCT-90-4T-7.5/AL IE3	1015	970	900	500	15	16x22º30'	60
106	110	HCT-90-4T-10/AL IE3	1015	970	900	500	15	16x22º30'	60
107	111	HCT-90-6T-3/AL IE3	1015	970	900	500	15	16x22º30'	-
108	112	HCT-90-6T-4/AL IE3	1015	970	900	500	15	16x22º30'	60
109	113	HCT-100-4T-7.5/AL IE3	1115	1070	1000	600	15	16x22º30'	-
110	114	HCT-100-4T-10/AL IE3	1115	1070	1000	600	15	16x22º30'	-
111	115	HCT-100-4T-15/AL IE3	1115	1070	1000	600	15	16x22º30'	-
112	116	HCT-100-4T-20/AL IE3	1115	1070	1000	600	15	16x22º30'	-
113	117	HCT-100-6T-3/AL IE3	1115	1070	1000	600	15	16x22º30'	-
114	118	HCT-100-6T-4/AL IE3	1115	1070	1000	600	15	16x22º30'	-
115	124	HCT-100-6T-5.5/AL IE3	1115	1070	1000	600	15	16x22º30'	-
