S - Silencers to fit to inlet or outlet

Manufacturer	SODECA, S.L.U.
Description	Silencers: S-80/600/218-A
Mass	9
Length	703
Unit width	280

Unit height	280
Input diameter	80
Output diameter	80
Output width	-
Output height	-

CAD models

Request for quotation

Product selection

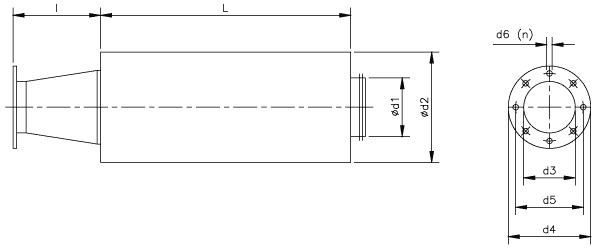

Index	Selector	Model	L (mm)	d1 (mm)	d2 (mm)	l (mm)	d3 (mm)	d4 (mm)	d5 (mm)	d6 (mm)	n (mm)	a (mm)	b (mm)	A (mm)	B (mm)	M (mm)
1	1	S-80/600/218-A	600	80	280	103	80	113	95	6	4x90°	-	-	-	-	-
2	2	S-100/600/324-A	600	100	300	108	80	130	112	6	4x90°	-	-	-	-	-
3	3	S-125/600/325-A	600	125	315	114	94	140	122	7	4x90°	-	-	-	-	-
4	4	S-150/600/426-A	600	150	355	132	117	155	132	7	4x90°	-	-	-	-	-
5	5	S-150/600/527-A	600	150	355	114	125	170	147	7	4x90°	-	-	-	-	-
6	6	S-160/600/528-A	600	160	355	107	135	190	162	7	4x90°	-	-	-	-	-
7	71	S-200/600/531-A	600	200	400	135	160	215	180	7	4x90°	-	-	-	-	-
8	72	S-250/600/540-A	600	250	450	204	170	240	205	11	4x90°	-	-	-	-	-
9	73	S-315/900/545-A	900	315	500	266	180	255	220	11	4x90°	-	-	-	-	-
10	74	S-100/600/242-A	600	100	300	115	100	150	130	10	8x45°	-	-	-	-	-
11	75	S-150/900/248-A	900	150	355	200	112	160	140	10	8x45°	-	-	-	-	-
12	76	S-160/900/254-A	900	160	355	200	125	180	155	10	8x45°	-	-	-	-	-
13	77	S-200/900/260-A	900	200	400	200	150	210	175	10	8x45°	-	-	-	-	-
14	78	S-200/900/463-A	900	200	400	200	200	260	240	10	8x45°	-	-	-	-	-
15	79	S-250/900/467-A	900	250	450	200	224	280	258	10	8x45°	-	-	-	-	-
16	80	S-250/900/571-A	900	250	450	200	250	310	275	10	8x45°	-	-	-	-	-
17	81	S-250/600/640-A	600	250	450	200	250	310	275	10	8x45°	-	-	-	-	-
18	82	S-315/900/645-A	900	315	500	200	250	310	275	10	8x45°	-	-	-	-	-
19	83	S-355/900/650-A	900	355	560	200	250	310	275	10	8x45°	-	-	-	-	-
20	84	S-180/900/680-A	900	180	380	100	165	235	200	11	8x45°	-	-	-	-	-
21	85	S-180/900/790-A	900	180	380	100	185	235	219	11	8x45°	-	-	-	-	-
22	86	S-355/900/852-A	900	355	560	200	280	350	310	10	8x45°	-	-	-	-	-
23	87	S-400/1200/856-A	1200	400	600	200	355	430	395	10	8x45°	-	-	-	-	-
24	88	S-400/1200/863-A	1200	400	600	200	355	430	410	10	8x45°	-	-	-	-	-
25	89	S-450/1200/971-A	1200	450	630	200	400	480	450	12	8x45°	-	-	-	-	-
26	90	S-250/1200/980-A	1200	250	450	100	255	325	292	11	8x45°	-	-	-	-	-
27	91	S-280/1200/990-A	1200	280	450	100	286	366	332	11	8x45°	-	-	-	-	-
28	92	S-250/1200/1080-A	1200	250	450	100	255	325	292	11	8x45°	-	-	-	-	-
29	93	S-280/1200/1090-A	1200	280	450	100	286	366	332	11	8x45°	-	-	-	-	-
30	94	S-500/900/1250-A	900	500	710	300	361	441	405	11,5	8x45°	-	-	-	-	-
31	95	S-560/900/1456-A	900	560	750	450	406	486	448	11,5	12x30°	-	-	-	-	-
32	96	S-630/1200/1663-A	1200	630	800	450	568	668	629	11,5	16x22°30’	-	-	-	-	-
33	97	S-80/600/234-A	600	80	280	108	98	130	115	5	6x60°	-	-	-	-	-
34	98	S-100/600/142-A	600	100	300	108	90	160	130	9	4x90°	-	-	-	-	-
35	99	S-150/900/148-A	900	150	355	149	100	170	140	9	4x90°	-	-	-	-	-
36	100	S-160/900/154-A	900	160	355	146	115	183	155	11	4x90°	-	-	-	-	-
37	101	S-200/900/160-A	900	200	400	183	130	230	192	11	4x90°	-	-	-	-	-
38	102	S-200/900/166-A	900	200	400	162	140	230	200	11	4x90°	-	-	-	-	-
39	103	S-200/900/172-A	900	200	400	149	148	230	200	11	4x90°	-	-	-	-	-
40	104	S-250/600/540-C-A	600	250	450	204	170	240	205	11	4x90°	-	-	-	-	-
41	105	S-315/900/545-C-A	900	315	500	266	165	235	205	11	4x90°	-	-	-	-	-
42	106	S-355/900/550-A	900	355	560	293	210	278	258	9	6x60°	-	-	-	-	-
43	107	S-355/900/752-A	900	355	560	260	220	278	258	9	6x60°	-	-	-	-	-
44	108	S-355/1200/760-A	1200	355	560	224	246	322	280	10	6x60°	-	-	-	-	-
45	109	S-500/1200/880-A	1200	500	710	360	290	360	330	10	12x30°	-	-	-	-	-
46	110	S-315/600/922-A	600	315	500	238	220	278	256	9	8x45°	-	-	-	-	-
47	111	S-355/900/1025-A	900	355	560	224	245	305	282	9	8x45°	-	-	-	-	-
48	112	S-400/900/1128-A	900	400	600	250	270	348	320	9	8x45°	-	-	-	-	-
49	113	S-450/900/1231-A	900	450	630	291	295	382	354	9	8x45°	-	-	-	-	-
50	114	S-500/900/1435-A	900	500	710	284	345	422	394	9	8x45°	-	-	-	-	-
51	115	S-500/900/1640-A	900	500	710	227	395	464	438	9	8x45°	-	-	-	-	-
52	116	S-560/900/1845-A	900	560	750	241	445	515	485	9	8x45°	-	-	-	-	-
53	117	S-630/1200/2050-A	1200	630	800	269	495	565	535	11	8x45°	-	-	-	-	-
54	118	S-800/1200/2563-A	1200	800	1000	370	595	710	675	14	8x45°	-	-	-	-	-
55	119	S-400/900/1031-A	900	400	600	202	320	383	356	9	8x45°	-	-	-	-	-
56	120	S-450/900/1135-A	900	450	630	216	345	425	398	9	8x45°	-	-	-	-	-
57	121	S-500/900/1240-A	900	500	710	227	395	472	444	11	8x45°	-	-	-	-	-
58	122	S-560/900/1445-A	900	560	750	241	445	522	494	11	8x45°	-	-	-	-	-
59	123	S-630/1200/1650-A	1200	630	800	269	495	582	555	11	8x45°	-	-	-	-	-
60	124	S-710/900/1856-A	900	710	900	301	555	645	615	11	8x45°	-	-	-	-	-
61	125	S-800/900/2063-A	900	800	1000	329	625	720	688	11	8x45°	-	-	-	-	-
62	126	S-800/1200/2271-A	1200	800	1000	224	705	800	768	13	8x45°	-	-	-	-	-
63	127	S-800/1200/2380-A	1200	800	1000	224	800	906	861	13	16x22°	-	-	-	-	-
64	128	S-80/600/218-I	600	80	280	103	54	90	76	6	4x90°	-	-	-	-	-
65	129	S-100/600/324-I	600	100	300	131	62	110	90	7	4x90°	-	-	-	-	-
66	130	S-125/600/325-I	600	125	315	142	80	120	102	7	4x90°	-	-	-	-	-
67	131	S-150/600/426-I	600	150	355	176	90	140	119	7	4x90°	-	-	-	-	-
68	132	S-150/600/527-I	600	150	355	149	100	155	129	7	4x90°	-	-	-	-	-
69	133	S-160/600/528-I	600	160	355	138	130	190	160	11	4x90°	-	-	-	-	-
70	134	S-200/600/531-I	600	200	400	162	140	200	175	11	4x90°	-	-	-	-	-
71	135	S-250/600/540-I	600	250	450	217	150	220	190	13	4x90°	-	-	-	-	-
72	136	S-315/900/545-I	900	315	500	266	175	250	220	13	4x90°	-	-	-	-	-
73	137	S-80/600/234-I	600	80	280	103	40	100	72	9	2x180°	-	-	-	-	-
74	138	S-100/600/142-I	600	100	300	131	60	120	90	11	4x90°	-	-	-	-	-
75	139	S-150/900/148-I	900	150	355	176	73	150	110	11	4x90°	-	-	-	-	-
76	140	S-160/900/154-I	900	160	355	190	80	160	120	13	4x90°	-	-	-	-	-
77	141	S-200/900/160-I	900	200	400	245	85	160	120	13	4x90°	-	-	-	-	-
78	142	S-200/900/166-I	900	200	400	245	85	160	120	13	4x90°	-	-	-	-	-
79	143	S-200/900/172-I	900	200	400	245	90	175	140	13	4x90°	-	-	-	-	-
80	144	S-100/600/242-I	600	100	300	200	-	-	-	-	-	95	60	155	120	-
81	145	S-150/900/248-I	900	150	355	200	-	-	-	-	-	105	66	165	126	-
82	146	S-160/900/254-I	900	160	355	200	-	-	-	-	-	115	75	175	135	-
83	147	S-200/900/260-I	900	200	400	200	-	-	-	-	-	125	85	185	145	-
84	148	S-200/900/463-I	900	200	400	200	-	-	-	-	-	125	85	185	145	-
85	149	S-250/900/467-I	900	250	450	250	-	-	-	-	-	130	90	190	150	-
86	150	S-250/900/571-I	900	250	450	250	-	-	-	-	-	145	95	205	155	-
87	151	S-250/600/640-I	600	250	450	250	-	-	-	-	-	200	125	260	185	-
88	152	S-315/900/645-I	900	315	500	250	-	-	-	-	-	224	140	284	200	-
89	153	S-355/900/650-I	900	355	560	250	-	-	-	-	-	250	160	310	220	-
90	154	S-180/900/680-I	600	180	380	100	-	-	-	-	-	71	100	131	160	-
91	155	S-180/900/790-I	600	180	380	100	-	-	-	-	-	80	112	140	172	-
92	156	S-355/900/852-I	900	355	560	250	-	-	-	-	-	280	180	340	240	-
93	157	S-400/1200/856-I	1200	400	600	280	-	-	-	-	-	280	180	340	240	-
94	158	S-400/1200/863-I	1200	400	600	280	-	-	-	-	-	315	200	375	260	-
95	159	S-450/1200/971-I	1200	450	630	280	-	-	-	-	-	355	224	425	294	-
96	160	S-250/1200/980-I	1200	250	450	100	-	-	-	-	-	140	200	210	270	-
97	161	S-280/1200/990-I	1200	280	450	100	-	-	-	-	-	160	224	230	294	-
98	162	S-250/1200/1080-I	1200	250	450	100	-	-	-	-	-	140	200	210	270	-
99	163	S-280/1200/1090-I	1200	280	450	100	-	-	-	-	-	160	224	230	294	-
100	164	S-500/900/1250-I	900	500	600	300	-	-	-	-	-	280	400	360	480	-
101	165	S-560/900/1456-I	900	560	630	450	-	-	-	-	-	315	450	395	530	-
102	166	S-630/1200/1663-I	1200	630	750	450	-	-	-	-	-	355	500	435	580	-
103	167	S-250/600/540-C-I	600	250	450	300	-	-	-	-	-	140	120	224	206	-
104	168	S-315/900/545-C-I	900	315	500	300	-	-	-	-	-	170	135	255	222	-
105	169	S-355/900/550-I	900	355	560	300	-	-	-	-	-	200	150	296	246	-
106	170	S-355/900/752-I	900	355	560	300	-	-	-	-	-	200	160	296	256	-
107	171	S-355/1200/760-I	1200	355	560	300	-	-	-	-	-	220	180	316	276	-
108	172	S-500/1200/880-I	1200	500	710	300	-	-	-	-	-	290	190	360	249	-
109	173	S-315/600/922-I	600	315	500	300	-	-	-	-	-	216	140	282	204	-
110	174	S-355/900/1025-I	900	355	560	300	-	-	-	-	-	250	165	314	229	-
111	175	S-400/900/1128-I	900	400	600	300	-	-	-	-	-	300	180	364	244	-
112	176	S-450/900/1231-I	900	450	630	300	-	-	-	-	-	320	200	384	266	-
113	177	S-500/900/1435-I	900	500	710	300	-	-	-	-	-	280	228	344	294	-
114	178	S-500/900/1640-I	900	500	710	300	-	-	-	-	-	320	250	404	336	-
115	179	S-560/900/1845-I	900	560	750	450	-	-	-	-	-	360	284	444	370	-
116	180	S-630/1200/2050-I	1200	630	800	450	-	-	-	-	-	450	315	545	412	-
117	181	S-800/1200/2563-I	1200	800	1000	450	-	-	-	-	-	600	410	706	512	-
118	182	S-400/900/1031-I	900	400	600	300	-	-	-	-	-	315	250	385	320	-
119	183	S-450/900/1135-I	900	450	630	450	-	-	-	-	-	355	280	425	350	-
120	184	S-500/900/1240-I	900	500	710	450	-	-	-	-	-	400	315	480	395	-
121	185	S-560/900/1445-I	900	560	750	450	-	-	-	-	-	450	355	540	445	-
122	186	S-630/1200/1650-I	1200	630	800	450	-	-	-	-	-	500	400	590	490	-
123	187	S-710/900/1856-I	900	710	900	450	-	-	-	-	-	560	450	660	550	-
124	188	S-800/900/2063-I	900	800	1000	450	-	-	-	-	-	630	500	750	620	-
125	189	S-800/1200/2271-I	1200	800	1000	450	-	-	-	-	-	710	560	840	690	-
126	190	S-800/1201/2380-I	1200	800	1000	450	-	-	-	-	-	560	800	680	920	-
127	191	S-160/600-A	600	-	260	-	160	220	200	10	4x90º	-	-	-	-	-
128	192	S-180/600-A	600	-	300	-	180	240	210	10	4x90º	-	-	-	-	-
129	193	S-250/600-A	600	-	450	-	250	310	280	10	4x90º	-	-	-	-	-
130	194	S-315/900-A	900	-	500	-	315	390	355	10	8x45º	-	-	-	-	-
131	195	S-355/900-A	900	-	560	-	355	430	395	10	8x45º	-	-	-	-	-
132	196	S-400/900-A	900	-	600	-	400	480	450	12	8x45º	-	-	-	-	-
133	197	S-450/900-A	900	-	630	-	450	530	500	12	8x45º	-	-	-	-	-
134	198	S-500/900-A	900	-	710	-	500	590	560	12	12x30º	-	-	-	-	-
135	199	S-560/900-A	900	-	750	-	560	650	620	12	12x30º	-	-	-	-	-
136	200	S-630/900-A	900	-	800	-	630	720	690	12	12x30º	-	-	-	-	-
137	201	S-710/900-A	900	-	900	-	710	800	770	12	16x22º30’	-	-	-	-	-
138	202	S-800/900-A	900	-	1000	-	800	900	860	12	16x22º30’	-	-	-	-	-
139	203	S-900/1200-A	1200	-	1120	-	900	1000	970	12	16x22º30’	-	-	-	-	-
140	204	S-1000/1200-A	1200	-	1200	-	1000	1100	1070	12	16x22º30’	-	-	-	-	-
141	205	SC-1000/1200	1200	1000	1200	100	1000	1100	1070	15	16x22º30’	-	-	-	-	-
142	206	SC-630/900	900	630	800	100	630	720	690	12	12x30º	-	-	-	-	-
143	207	SC-710/900	900	710	900	100	710	800	770	12	16x22º30’	-	-	-	-	-
144	248	SC-800/900	900	800	1000	100	800	900	860	12	16x22º30’	-	-	-	-	-
145	249	SC-900/1200	1200	900	1120	100	900	1000	970	15	16x22º30’	-	-	-	-	-

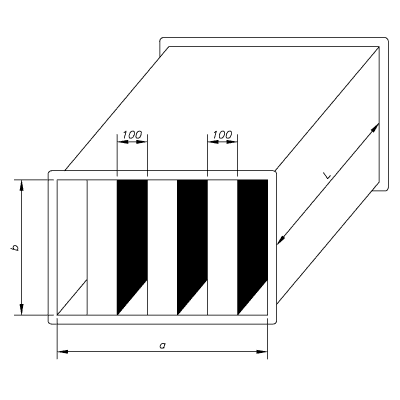

146	250	SR-1000/900/900	900	-	-	-	-	-	-	-	-	1000	900	-	-	-
147	251	SR-1200/900/900	900	-	-	-	-	-	-	-	-	1200	900	-	-	-
148	252	SR-1400/1200/900	900	-	-	-	-	-	-	-	-	1400	1200	-	-	-
149	253	SR-1800/1200/1200	1200	-	-	-	-	-	-	-	-	1800	1200	-	-	-
150	254	SR-1800/1500/1200	1200	-	-	-	-	-	-	-	-	1800	1504	-	-	-
